Huawei Cloud CSMS + MySQL + phpMyAdmin

This example demonstrates using Docker Secret Operator (DSO) to inject MySQL credentials from Huawei Cloud Secret Management Service (CSMS) into a MySQL + phpMyAdmin stack โ€” with zero secrets in your compose file or on disk.

Authentication uses IAM Agency on the ECS instance โ€” no long-term access keys required.

What This Example Does

Component Role
Huawei CSMS Stores MySQL credentials as a JSON secret
IAM Agency Grants the ECS instance permission to read CSMS and KMS resources
dso-agent Reads temporary credentials from ECS metadata, fetches secrets from CSMS
dso compose Injects secret values into docker compose at container startup
mysql_db MySQL container receives credentials via environment variables
phpmyadmin Connects to MySQL without any credentials in the compose file

Prerequisites

  • DSO installed (curl -fsSL .../install.sh | sudo bash)
  • A Huawei Cloud ECS instance in region ap-southeast-2
  • A CSMS secret created with your MySQL credentials (see Step 1)
  • An IAM Agency with CSMS FullAccess and KMS Administrator attached to the ECS (see Steps 2โ€“4)

Step 1 โ€” Create the Secret in Huawei CSMS

In the Huawei Console โ†’ Cloud Secret Management Service โ†’ Secrets, create a new secret.

  • Secret type: Other
  • Secret name: localhost-sm (use your own name)
  • Secret value: JSON format with your MySQL credentials
{
  "MYSQL_ROOT_PASSWORD": "root",
  "MYSQL_USER": "admin",
  "MYSQL_USER_PASSWORD": "password"
}

Important: DSO maps the JSON field names to container ENV variables. The keys in mappings: in dso.yaml must match the JSON field names exactly (case-sensitive).

Step 2 โ€” Create an IAM Agency

Go to Huawei Console โ†’ IAM โ†’ Agencies โ†’ Create Agency.

In the Basic Information tab, fill in:

Field Value
Agency Name prod-abstraxn-kong-csms (or any name you choose)
Agency Type Cloud service
Cloud Service Elastic Cloud Server (ECS) and Bare Metal Server
Validity Period Unlimited

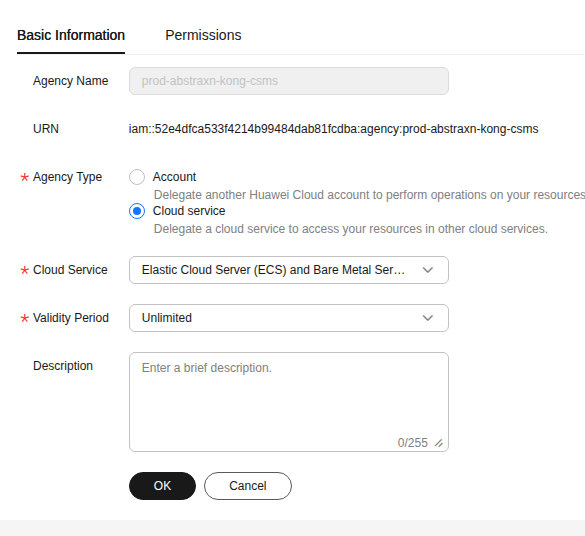

IAM Agency Basic Information - Agency Type set to Cloud Service for ECS

Click OK to create.

Step 3 โ€” Add Permissions to the Agency

After creating the agency, go to the Permissions tab and click Authorize.

Add the following two policies:

Policy Scope Why Required
CSMS FullAccess All resources Allows reading secret values from CSMS
KMS Administrator All resources Allows decrypting secret values encrypted by KMS

Important: Without KMS Administrator, you will get error CSMS.0401 โ€” โ€œSecret value decryption through KMS service failed.โ€ Both policies are required.

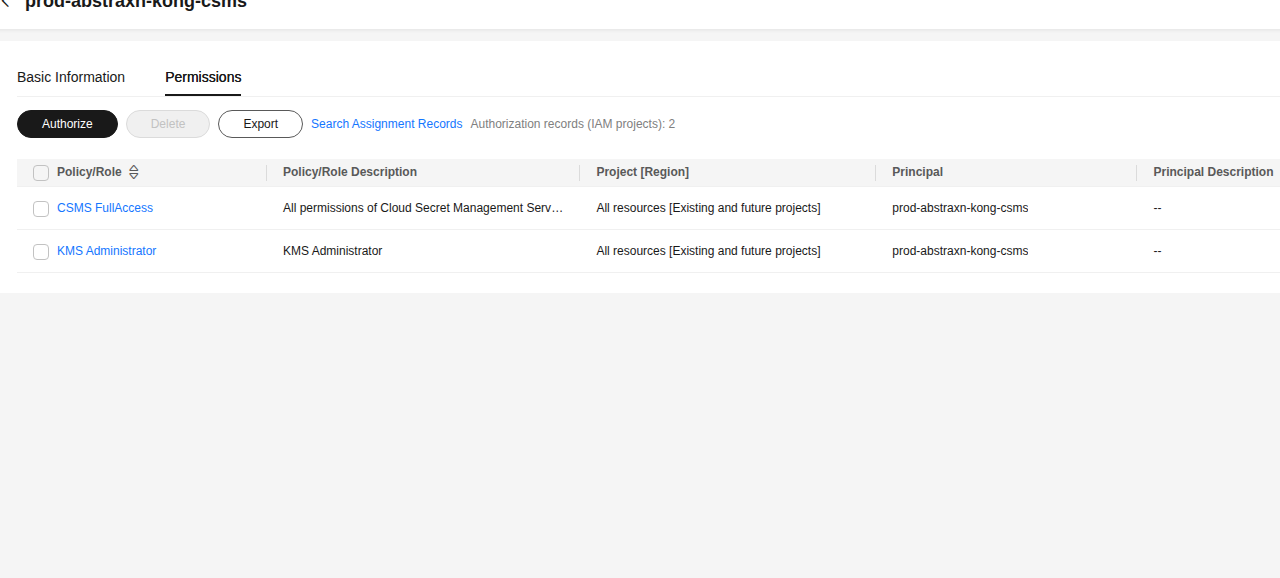

IAM Agency Permissions showing CSMS FullAccess and KMS Administrator

Step 4 โ€” Attach the Agency to Your ECS Instance

Go to Huawei Console โ†’ ECS โ†’ Your Instance โ†’ Management Information.

Click the pencil icon next to Agency and select the agency you just created (prod-abstraxn-kong-csms).

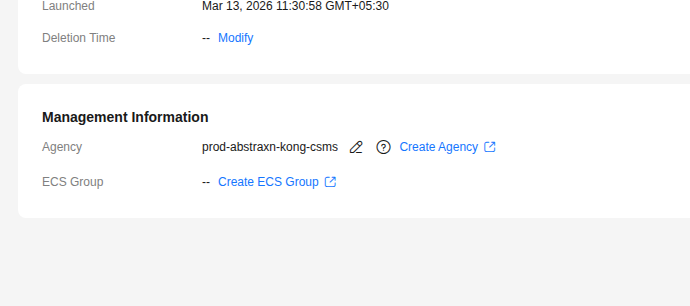

ECS Instance Management Information showing agency prod-abstraxn-kong-csms attached

After attaching, the ECS instance can now obtain temporary credentials automatically from the metadata service without any long-term access keys.

Step 5 โ€” Fetch Temporary Credentials and Configure DSO

On your Huawei ECS instance, run the following to fetch temporary credentials from the metadata service and write them to the DSO agent environment file:

# Fetch temporary credentials from ECS metadata service
CREDS=$(curl -s http://169.254.169.254/openstack/latest/securitykey)

sudo tee /etc/dso/agent.env > /dev/null << EOF
HUAWEI_ACCESS_KEY=$(echo $CREDS | python3 -c "import sys,json; print(json.load(sys.stdin)['credential']['access'])")
HUAWEI_SECRET_KEY=$(echo $CREDS | python3 -c "import sys,json; print(json.load(sys.stdin)['credential']['secret'])")
HUAWEI_SECURITY_TOKEN=$(echo $CREDS | python3 -c "import sys,json; print(json.load(sys.stdin)['credential']['securitytoken'])")
EOF

sudo chmod 600 /etc/dso/agent.env

Why this step is needed: The dso-agent runs as a systemd service and does not inherit your shell environment. The credentials must be explicitly placed in /etc/dso/agent.env which the systemd unit reads as EnvironmentFile.

Step 6 โ€” Configure DSO

Copy the provided dso.yaml to the system config location:

sudo mkdir -p /etc/dso
sudo cp dso.yaml /etc/dso/dso.yaml
sudo chmod 600 /etc/dso/dso.yaml

dso.yaml โ€” connects to Huawei CSMS and maps the secret JSON fields to container ENV vars:

provider: huawei

config:
  region: ap-southeast-2
  project_id: 98176f42176505f83584d83fd6baedf   # Your project ID

agent:
  refresh_interval: 5s
  cache: true

secrets:
  - name: localhost-sm              # Exact CSMS secret name
    inject: env
    mappings:
      MYSQL_ROOT_PASSWORD: MYSQL_ROOT_PASSWORD   # JSON key โ†’ container ENV
      MYSQL_USER: MYSQL_USER
      MYSQL_USER_PASSWORD: MYSQL_PASSWORD        # JSON key โ†’ different ENV name

Finding your project_id: Huawei Console โ†’ top-right menu โ†’ My Credentials โ†’ Project ID for your region.

Step 7 โ€” Start the DSO Agent

sudo systemctl restart dso-agent
sudo systemctl status dso-agent

# Verify the secret is reachable
dso fetch localhost-sm

Expected output:

Secret: localhost-sm
  MYSQL_ROOT_PASSWORD: root
  MYSQL_USER: admin
  MYSQL_USER_PASSWORD: password

Step 8 โ€” Review the Docker Compose File

docker-compose.yaml โ€” no secrets anywhere in this file:

services:
  mysql_db:
    container_name: mysql_database_cnt
    image: mysql:latest
    ports:
      - "3306:3306"
    environment:
      - MYSQL_ROOT_PASSWORD   # โ† Injected from Huawei CSMS by DSO
      - MYSQL_USER            # โ† Injected from Huawei CSMS by DSO
      - MYSQL_PASSWORD        # โ† Injected from Huawei CSMS by DSO
    restart: always
    volumes:
      - $PWD/mysql-data:/var/lib/mysql

  phpmyadmin:
    container_name: phpmyadmin_cnt
    image: phpmyadmin/phpmyadmin:latest
    restart: always
    ports:
      - "82:80"
    environment:
      PMA_HOST: mysql_db
      PMA_PORT: 3306

Step 9 โ€” Deploy

dso compose up -d

DSO will:

  1. Load /etc/dso/dso.yaml
  2. Use HUAWEI_ACCESS_KEY, HUAWEI_SECRET_KEY, HUAWEI_SECURITY_TOKEN from /etc/dso/agent.env
  3. Fetch localhost-sm from Huawei CSMS in ap-southeast-2
  4. Map MYSQL_ROOT_PASSWORD, MYSQL_USER, MYSQL_USER_PASSWORD to the container ENV vars
  5. Run docker compose up -d with the injected environment

Step 10 โ€” Verify the Secrets Were Injected

docker exec -it mysql_database_cnt bash
env | grep MYSQL_

Expected output:

MYSQL_ROOT_PASSWORD=root
MYSQL_USER=admin
MYSQL_PASSWORD=password

Step 11 โ€” Access phpMyAdmin

Open your browser at http://<ECS-PUBLIC-IP>:82

Login with:

  • Server: mysql_db
  • Username: the value of MYSQL_USER from CSMS
  • Password: the value of MYSQL_USER_PASSWORD from CSMS

Troubleshooting

Error CSMS.0401 โ€” KMS decryption failed

huawei csms GetSecret: error_code: CSMS.0401, error_message: ๅ‡ญๆฎๅ€ผ้€š่ฟ‡KMSๆœๅŠกๅŠ ๅฏ†่งฃๅฏ†ๅคฑ่ดฅ

The IAM Agency is missing KMS Administrator permission. Go to IAM โ†’ Agencies โ†’ your agency โ†’ Permissions โ†’ Authorize and add KMS Administrator. Both CSMS FullAccess and KMS Administrator are required.

Error: no credentials / credential build failed

The /etc/dso/agent.env file is missing or the temporary credentials have expired. Re-run the metadata fetch command:

CREDS=$(curl -s http://169.254.169.254/openstack/latest/securitykey)
sudo tee /etc/dso/agent.env > /dev/null << EOF
HUAWEI_ACCESS_KEY=$(echo $CREDS | python3 -c "import sys,json; print(json.load(sys.stdin)['credential']['access'])")
HUAWEI_SECRET_KEY=$(echo $CREDS | python3 -c "import sys,json; print(json.load(sys.stdin)['credential']['secret'])")
HUAWEI_SECURITY_TOKEN=$(echo $CREDS | python3 -c "import sys,json; print(json.load(sys.stdin)['credential']['securitytoken'])")
EOF
sudo chmod 600 /etc/dso/agent.env
sudo systemctl restart dso-agent

Note: Temporary credentials from ECS IAM Agency expire periodically (typically every 24 hours). Consider setting up a cron job to refresh them automatically.

Secret key not found in mappings

The JSON key in your CSMS secret must exactly match the key in mappings: (case-sensitive). Verify the secret structure:

# Using Huawei CLI (hcloud)
hcloud csms ShowSecretVersion \
  --secret-name localhost-sm \
  --version-id latest \
  --region ap-southeast-2

Automatic Credential Refresh (Optional)

Temporary IAM Agency credentials expire. Set up a cron job to refresh them daily:

sudo tee /etc/cron.d/dso-hw-creds > /dev/null << 'EOF'
# Refresh Huawei ECS IAM Agency credentials daily and restart agent
0 3 * * * root CREDS=$(curl -s http://169.254.169.254/openstack/latest/securitykey) && \
  AK=$(echo $CREDS | python3 -c "import sys,json; print(json.load(sys.stdin)['credential']['access'])") && \
  SK=$(echo $CREDS | python3 -c "import sys,json; print(json.load(sys.stdin)['credential']['secret'])") && \
  ST=$(echo $CREDS | python3 -c "import sys,json; print(json.load(sys.stdin)['credential']['securitytoken'])") && \
  printf "HUAWEI_ACCESS_KEY=%s\nHUAWEI_SECRET_KEY=%s\nHUAWEI_SECURITY_TOKEN=%s\n" "$AK" "$SK" "$ST" \
    > /etc/dso/agent.env && chmod 600 /etc/dso/agent.env && \
  systemctl restart dso-agent
EOF

File Structure

examples/huawei-compose/
โ”œโ”€โ”€ docker-compose.yaml     # MySQL + phpMyAdmin (no hardcoded secrets)
โ”œโ”€โ”€ dso.yaml                # DSO config pointing to Huawei CSMS
โ”œโ”€โ”€ screenshots/
โ”‚   โ”œโ”€โ”€ iam-agency-basic-info.png     # Agency type = Cloud Service (ECS)
โ”‚   โ”œโ”€โ”€ iam-agency-permissions.png   # CSMS FullAccess + KMS Administrator
โ”‚   โ””โ”€โ”€ ecs-agency-attached.png      # ECS Management Info showing agency
โ””โ”€โ”€ README.md               # This guide

Cleanup

dso compose down
# Remove volumes too:
docker compose down -v
